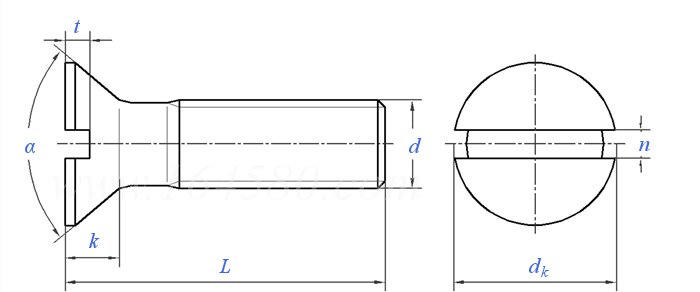

asme b 18.6.3 (t3) - 2013 100°沉头开槽机械螺钉 [table 3] (astm f837 / f468)

尺寸单位: inch

美标asme b18.6.3 (t3) - 2013 asme18.6.3 18 100°沉头开槽机械螺钉 [table 3] (astm f837 / f468)

扫一扫分享

米/英制螺纹对照螺纹直径与受力截面积牌号等级

螺纹尺寸
d

d	公称
pp	粗牙/unc
d_k	最大值
d_k	最小值
k	参考值
n	最大值
n	最小值
t	最大值
t	最小值
α	最大值
α	最小值

0.0210	0.0340	0.0470	0.0600	0.0730	0.0860	0.0990	0.1120	0.1380	0.1640	0.1900	0.2500	0.3125	0.3750
-	-	-	-	64	56	48	40	32	32	24	20	18	16
0.04	0.06	0.087	0.112	0.137	0.162	0.187	0.212	0.262	0.312	0.362	0.477	0.597	0.717
0.035	0.055	0.08	0.095	0.118	0.142	0.165	0.188	0.235	0.282	0.329	0.437	0.55	0.662
0.009	0.014	0.02	0.026	0.031	0.037	0.043	0.049	0.06	0.072	0.083	0.11	0.138	0.165
0.008	0.012	0.017	0.023	0.026	0.031	0.035	0.039	0.048	0.054	0.06	0.075	0.084	0.094
0.005	0.008	0.01	0.016	0.019	0.023	0.027	0.031	0.039	0.045	0.05	0.064	0.072	0.081
0.008	0.011	0.013	0.013	0.016	0.019	0.022	0.024	0.03	0.036	0.042	0.055	0.069	0.083
0.004	0.007	0.008	0.008	0.01	0.012	0.014	0.017	0.022	0.027	0.031	0.042	0.053	0.065
101°	101°	101°	101°	101°	101°	101°	101°	101°	101°	101°	101°	101°	101°
99°	99°	99°	99°	99°	99°	99°	99°	99°	99°	99°	99°	99°	99°

①,头部边缘为倒圆或平的。
②,ds应不小于2a级螺纹最小中径，并不大于公称（基本）螺纹大径。
③,机械螺钉的螺纹长度：

1）螺纹规格≤5#: 公称长度≤3倍公称直径的应为满扣产品，头下螺纹肩距≤1倍螺距。公称长度＞3倍公称直径到 1-1/8 in 的，允许头下肩距最大不超过2倍螺距。若无其他规定，长螺钉的最小螺纹长度为1 in 。

2）螺纹规格≥6#: 公称长度≤3倍公称直径的应为满扣产品，头下螺纹肩距≤1倍螺距。公称长度＞3倍公称直径到 2 in 的，允许头下螺纹肩距最大不超过2倍螺距。若无其他规定，长螺钉的最小螺纹长度为 1.5 in 。
④,头部凹槽详细尺寸请点击下方的“采用标准”
