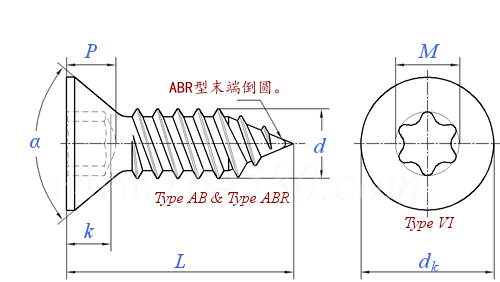

asme 18.6.3 (t2-vi t40) - 2013 梅花槽82°沉头 ab abr自攻螺钉

尺寸单位: inch
美标asme 18.6.3 (t2-vi t40) - 2013 asme18. 梅花槽82°沉头 ab abr自攻螺钉
asme 18.6.3 (t2-vi t40) - 2013 梅花槽82°沉头 ab abr自攻螺钉
扫一扫分享
螺纹尺寸
d
d 公称
pp
槽号
m 参考值
p 最大值
最小值
dk 最大值
最小值
k 参考值
α 最大值
最小值
l0 ④ 公称
y ④ 螺纹过渡长度(全螺纹) 最大值
b ④ 螺纹长度 (长螺钉) 最小值
0.0730 0.0860 0.0990 0.1120 0.1250 0.1380 0.1510 0.1640 0.1900 0.2160 0.2500 0.3125 0.3750 0.4375 0.5000
42 32 28 24 20 20 19 18 16 14 14 12 12 10 10
t5 t6 t8 t8 t10 t10 t15 t15 t20 t25 t27 t40 t40 t50 t50
0.058 0.069 0.094 0.094 0.111 0.111 0.132 0.132 0.155 0.178 0.200 0.266 0.266 0.352 0.352
0.017 0.022 0.025 0.033 0.045 0.045 0.045 0.051 0.065 0.070 0.090 0.105 0.135 0.125 0.135
0.012 0.017 0.020 0.028 0.035 0.035 0.035 0.040 0.050 0.055 0.075 0.087 0.115 0.105 0.120
0.137 0.162 0.187 0.212 0.237 0.262 0.287 0.312 0.362 0.412 0.477 0.597 0.717 0.760 0.815
0.120 0.144 0.167 0.191 0.215 0.238 0.262 0.285 0.333 0.380 0.442 0.556 0.670 0.715 0.765
0.043 0.051 0.059 0.067 0.075 0.083 0.091 0.100 0.116 0.132 0.153 0.191 0.230 0.223 0.223
80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80°
82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82°
9/16 5/8 3/4 13/16 15/16 1 1-1/8 1-1/4 1-3/8 1-5/8 1-13/16 1-13/16 1-7/8 1-7/8 1-7/8
0.024 0.031 0.036 0.042 0.050 0.050 0.053 0.056 0.062 0.071 0.071 0.083 0.083 0.100 0.100
0.440 0.520 0.590 0.670 0.750 0.830 0.910 0.980 1.140 1.300 1.500 1.500 1.500 1.500 1.500
①, 若以小数规定公称直径，应省略小数前和小数点后第四位的零。
②,螺钉末端钉尖上不允许因螺纹辗压而形成的虚尖，允许略带圆弧或圆钝形末端。
③,小于等于8#的螺钉，螺纹牙顶平面宽度不应超过0.004in，大于8#的应不超过0.006in。
④,正常情况下，当螺钉长度小于等于其公称长度l0时应采用全螺纹，过渡螺纹长度应小于等于y；若螺钉长度大于其公称长度l0可采用半牙型式，但其螺纹长度应不小于b。
