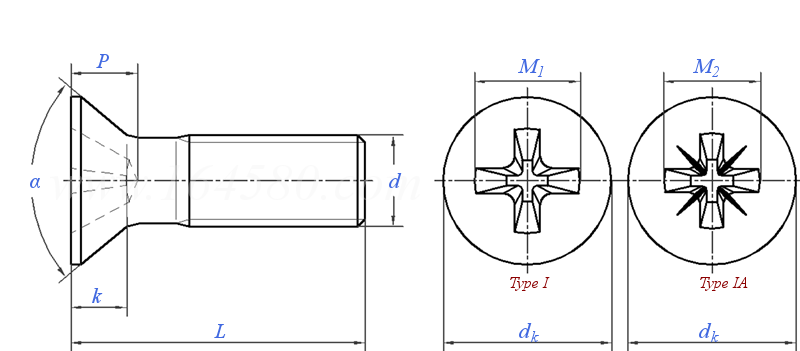

asme b 18.6.3 (t2-i/t2-ia) - 2013 82°十字槽沉头螺钉 [table 2] (astm f837, f468)

尺寸单位: inch
美标asme b18.6.3 (t2-i/t2-ia) - 2013 asme1 82°十字槽沉头螺钉 [table 2] (astm f837, f468)
asme b 18.6.3 (t2-i/t2-ia) - 2013 82°十字槽沉头螺钉 [table 2] (astm f837, f468)
扫一扫分享
米/英制螺纹对照 螺纹直径与受力截面积 牌号等级
螺纹尺寸
d
③ ③
d 公称
pp 粗牙/unc
dk 最大值
最小值
k 参考值
m1 i 型
m2 ia型
p i 型 最大值
i 型 最小值
ia型 最大值
ia 型 最小值
l ②
槽号 i 型
ia型
α 最小值
最大值
0.0600 0.0730 0.0860 0.0990 0.1120 0.1250 0.1380 0.1510 0.1640 0.1900 0.2160 0.2420
/ 64 56 48 40 40 32 / 32 24 24 /
0.112 0.137 0.162 0.187 0.212 0.237 0.262 0.287 0.312 0.362 0.412 0.462
0.096 0.120 0.144 0.167 0.191 0.215 0.238 0.262 0.285 0.333 0.380 0.427
0.035 0.043 0.051 0.059 0.067 0.075 0.083 0.091 0.100 0.116 0.132 0.148
0.062 0.070 0.096 0.100 0.122 0.148 0.168 0.176 0.182 0.198 0.262 0.276
0.062 0.070 0.096 0.100 0.122 0.148 0.168 0.176 0.182 0.198 0.262 0.276
0.036 0.044 0.056 0.061 0.082 0.075 0.095 0.103 0.110 0.125 0.139 0.154
0.020 0.028 0.040 0.045 0.066 0.052 0.072 0.080 0.087 0.102 0.116 0.131
0.037 0.045 0.053 0.058 0.079 0.071 0.091 0.099 0.107 0.122 0.136 0.151
0.021 0.029 0.037 0.042 0.063 0.053 0.073 0.081 0.089 0.104 0.118 0.133
1/8 1/8 1/8 1/8 3/16 3/16 3/16 / 1/4 5/16 3/8 /
0 0 1 1 1 2 2 2 2 2 3 3
0 0 1 1 1 2 2 2 2 2 3 3
80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80°
82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82°
螺纹尺寸
d
③ ③ ③ ③ ④ ④ ④
d 公称
pp 粗牙/unc
dk 最大值
最小值
k 参考值
m1 i 型
m2 ia型
p i 型 最大值
i 型 最小值
ia型 最大值
ia 型 最小值
l ②
槽号 i 型
ia型
α 最小值
最大值
0.2500 0.2680 0.2940 0.3125 0.3200 0.3720 0.3750 0.4375 0.5000 0.5625 0.6250 0.7500
20 / / 18 / / 16 14 13 12 11 10
0.477 0.512 0.561 0.597 0.611 0.711 0.717 0.760 0.815 0.932 1.050 1.285
0.442 0.475 0.522 0.556 0.569 0.664 0.670 0.715 0.765 0.878 0.990 1.215
0.153 0.164 0.180 0.191 0.196 0.228 0.230 0.223 0.223 0.260 0.298 0.372
0.276 0.296 0.358 0.358 0.372 0.386 0.386 0.402 0.418 0.443 0.565 0.628
0.276 0.296 0.358 0.358 0.372 0.386 0.386 0.402 0.418 0.440 0.566 0.630
0.154 0.174 0.196 0.196 0.210 0.225 0.225 0.241 0.256 0.280 0,309 0.373
0.131 0.151 0.174 0.174 0.188 0.203 0.203 0.219 0.234 0.258 0,283 0.347
0.151 0.171 0.193 0.193 0.206 0.222 0.222 0.238 0.253 0.276 0.307 0.372
0.133 0.153 0.175 0.175 0.188 0.204 0.204 0.220 0.235 0.258 0.286 0.351
7/16 / / 1/2 / / 9/16 5/8 3/4 / / /
3 3 4 4 4 4 4 4 4 4 5 5
3 3 4 4 4 4 4 4 4 4 5 5
80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80° 80°
82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82° 82°
①,头部边缘为倒圆或平的。
②,小于等于表中长度的螺钉，为清根沉头型。
③,7#, 14#, 16#, 18#, 20#, 24#仅用于自攻螺钉。
④,9/16，5/8，3/4仅用于机械螺钉
⑤,机械螺钉的螺纹长度：

1）螺纹规格≤5#: 公称长度≤3倍公称直径的应为满扣产品，头下螺纹肩距≤1倍螺距。 公称长度＞3倍公称直径到 1-1/8 in 的，允许头下肩距最大不超过2倍螺距。 若无其他规定，长螺钉的最小螺纹长度为1 in 。

2）螺纹规格≥6#: 公称长度≤3倍公称直径的应为满扣产品，头下螺纹肩距≤1倍螺距。 公称长度＞3倍公称直径到 2 in 的，允许头下螺纹肩距最大不超过2倍螺距。 若无其他规定，长螺钉的最小螺纹长度为 1.5 in 。
⑥,机械螺钉材料
1)非热处理低碳钢，如1006~1022 硬度hrb69-100
2)当机械螺钉规定硬度时，应采用中低碳钢制造，如含硼或不含硼1018~1038 硬度hrc25-38
替代列表
asme b 18.6.3t2-i/t2-ia - 2013

采用标准

工艺相关

asme b 18.6.3 (t1) - 2013
82°开槽沉头机械螺钉 [table 1] (astm f837 / f468)
asme b 18.6.3 (t1 t40) - 2013
82°开槽沉头自攻螺钉 ab(abr)型 [table 1 table 40]
asme b 18.6.3 (t2-i/t2-ia t40) - 2013
十字槽82度沉头ab abr自攻螺钉
asme b 18.6.3 (t2-iii) - 2013
四方槽沉头螺钉 [table 2] (astm f837, f468)
asme b 18.6.3 (t2-iii t40) - 2013
方槽82度沉头ab abr自攻螺钉
asme b 18.6.3 (t2-vi) - 2013
梅花槽82° 沉头螺钉
asme 18.6.3 (t2-vi t40) - 2013
梅花槽82°沉头 ab abr自攻螺钉
asme b 18.6.3 (t10-i/t10-ia) - 2013
十字槽82°沉头清根机械螺钉

相关材料标准或牌号

自攻螺纹：ab型和abr型自攻螺纹和末端

1 [美标]

dimensions of threads and points for type ab and type abr thread-forming screws
ab, abr型

自攻螺纹：b型 bp型自攻螺钉螺纹和末端

2 [美标]

dimensions of threads and points for type b and bp thread-forming tapping screws
b, bp型

自攻螺纹：a型自攻螺钉螺纹和末端

3 [美标]

dimensions of threads and points for type a thread-forming tapping screws
a型

自攻螺纹：bf型 bt型 自切自攻螺钉螺纹和末端

4 [美标]

dimensions of threads and points for types bf and bt thread-cutting tapping screws
bf, bt型

自攻螺纹：d, f, g, t 型自攻螺钉 螺纹和末端

5 [美标]

dimensions of threads and points for type d, f, g, and t thread-cutting tapping screws
d, f, g, t型

自攻螺纹：自挤自攻【trs型】螺纹和末端

6 [美标]

dimensions of type trs tapping screws
trs型

引用参考
